單機設備

Stand alone equipment

首頁 > 單機設備 > Small bag packing machine

Small bag packing machine

設備描述 working principle technical specification 設備特點 成品展示

設備描述

Mitsubishi PLC programmable control, accurate measurement, and equipped with Chinese and English display operation, so that the equipment is simple to operate, easy to adjust, high degree of automation. It can automatically complete bag-making, measuring, filling, sealing, cutting, counting, printing batch number, and has the functions of positioning, opening and stopping.

working principle

When loaded with goods packaging placed on a conveyer belt, bag sealing part is automatically sent to the two sealing belt running and to the heating area, heating blocks of heat through the sealing belt transmission to the bag sealing part, make the film by hot melt soft, again through the cooling area, make the film surface temperature appropriate, and then through a small plastic bags sealing machine knurled wheel (or printing roller wheel, The upper and lower plastic film of the sealing part is bonded and pressed into a mesh pattern (or printed signs), and then the sealing bag is sent out of the machine by the guide rubber belt and the conveyor belt to complete the sealing operation.

technical specification

Technical parameters

Model JP-XD series

Main material food grade SUS304 high quality stainless steel (or according to customer requirements)

The length of the package ranges from 50 mm to 120 mm

The packing bandwidth ranges from 40 mm to 80 mm

Packing speed 30 ~ 60 bags/min

Measurement range 1 ~ 50 mL

Metering mode piston pump type

Bag-making method three side seal, four side seal or back seal

Incision mode Straight incision, serrated incision, continuous easy tearing incision

Power 900W/AC 380V / 50Hz

Dimensions length 800mm× width 700mm× height 1550mm

Weight 185 Kg

設備特點

The parts in contact with the material are made of high quality stainless steel, and the main electrical components are made of internationally famous manufacturers

The sealing machine can be equipped with embossing wheel and printing wheel, with the need to change the font, can seal at the same time printed on the factory date, shelf life, shelf life and other signs, sealing pattern and signs writing clear beauty.

The equipment has a firm sealing, high efficacy; Simple structure, compact, small volume; Beautiful appearance, advanced technology, low power consumption; Convenient operation, maintenance and other advantages.

Can be used for food bags, medicine, laboratory, daily cosmetics, local specialty, chemical products, electronic products, vegetable seeds, clothing, electronic originals, hardware, local specialty and other products packaging sealing. Widely used in factories, shops, retail departments, service industries and scientific research and military departments and other industries.

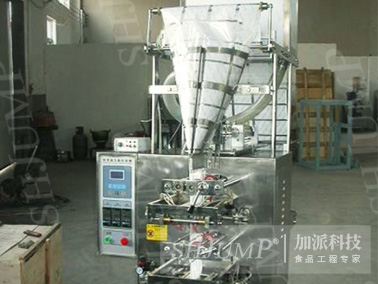

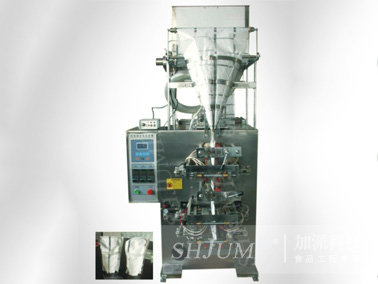

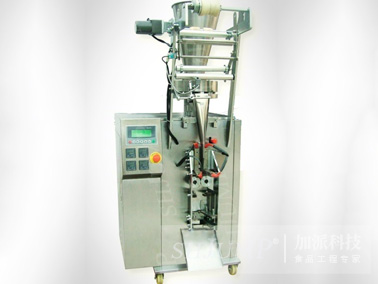

成品展示
